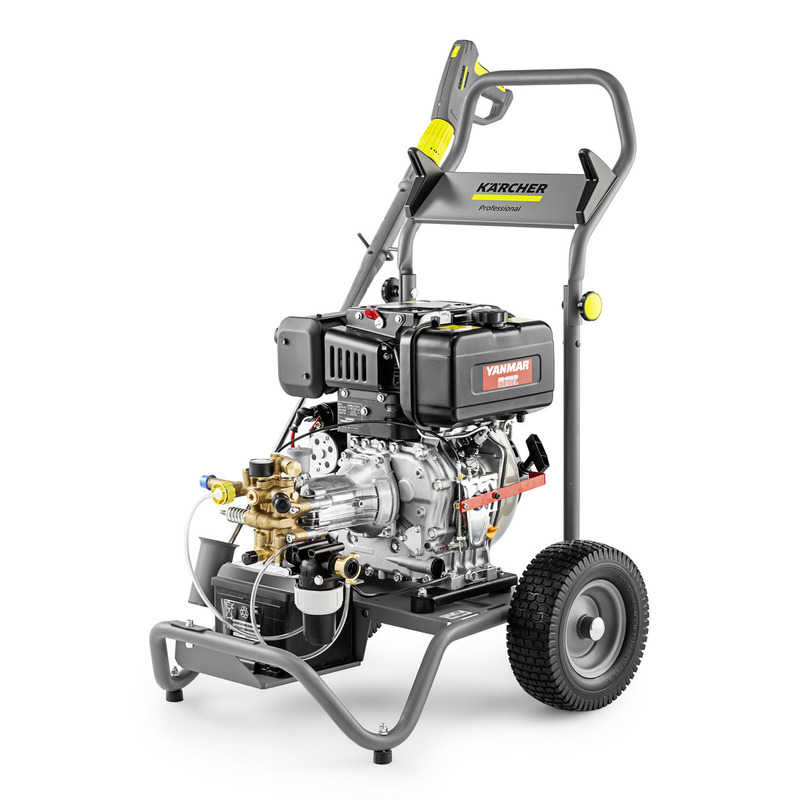

Designed for independent operation in areas with limited infrastructure, the HD 9/23 De is a diesel-powered, mobile cold-water high-pressure cleaner delivering 230 bar of pressure for superior cleaning performance. Engineered to excel in challenging outdoor conditions and demanding cleaning applications, it features a robust Yanmar diesel engine that generates its own power. If required, water can be drawn directly from natural sources, enabling operation even in remote locations. With a powerful 230-bar water pressure, this machine is built to handle tough cleaning tasks. Its ergonomic frame design and puncture-proof wheels ensure maximum mobility, while the durable base frame withstands heavy-duty use. The EASY Force high-pressure gun utilizes the recoil force of the water jet to eliminate holding force for the operator, enhancing comfort. Additionally, the easy lock quick-release fasteners enable setup and dismantling up to five times faster than conventional screw connections. For added protection, the unit includes a large water filter and a thermostat valve to safeguard the pump. Optional accessories, such as an extra cage frame with crane-loading eyelets, further enhance its versatility, making the HD 9/23 De an efficient and reliable solution for professional cleaning in challenging environments.
Maximum Independence
Optimum Ease of Use
Highly Versatile
Built for Tough Conditions
| Type | Operations |
|---|---|
| Flow rate (l/h) | 400 - 930 |
| Working pressure (bar/MPa) | 40 - up to 230 / 4 - up to 23 |
| Max. pressure (bar/MPa) | 270 / 27 |
| Water inlet | 1" |
| Drive type | Diesel |
| Motor manufacturer | Yanmar |
| Motor type | L 100 V |
| Number of simultaneous users | 1 |
| Portability | Cart |
| Colour | Anthracite |
| Weight (with accessories) (kg) | 112.5 |
| Weight incl. packaging (kg) | 115.5 |
| Dimensions (L x W x H) (mm) | 866 x 722 x 1146 |
