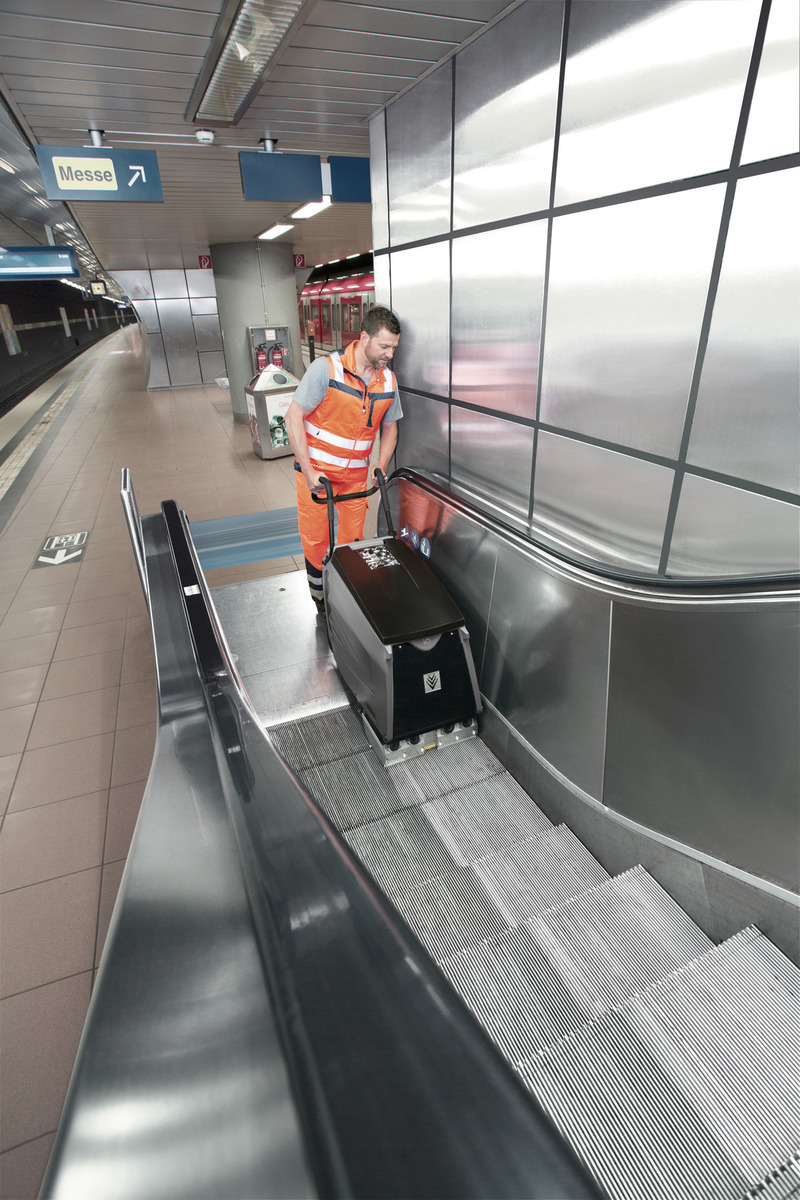

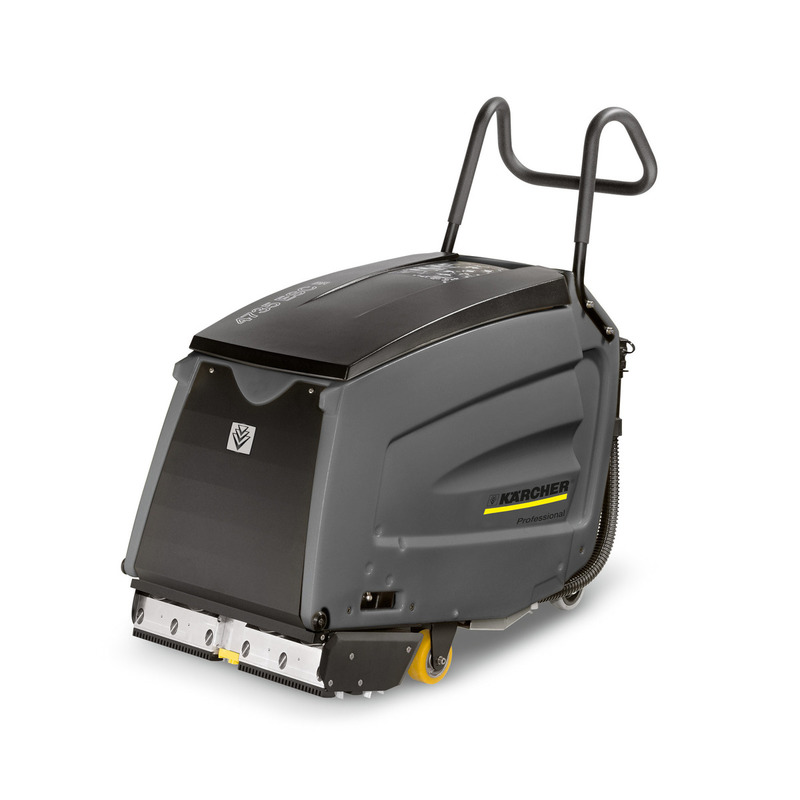

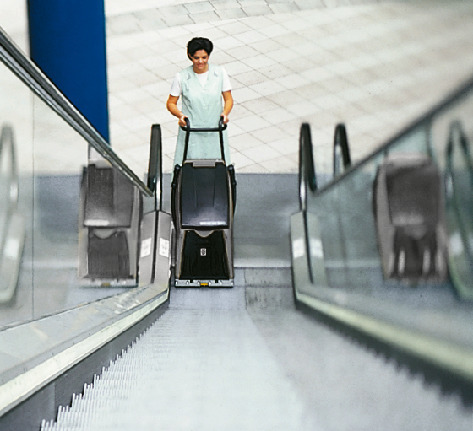

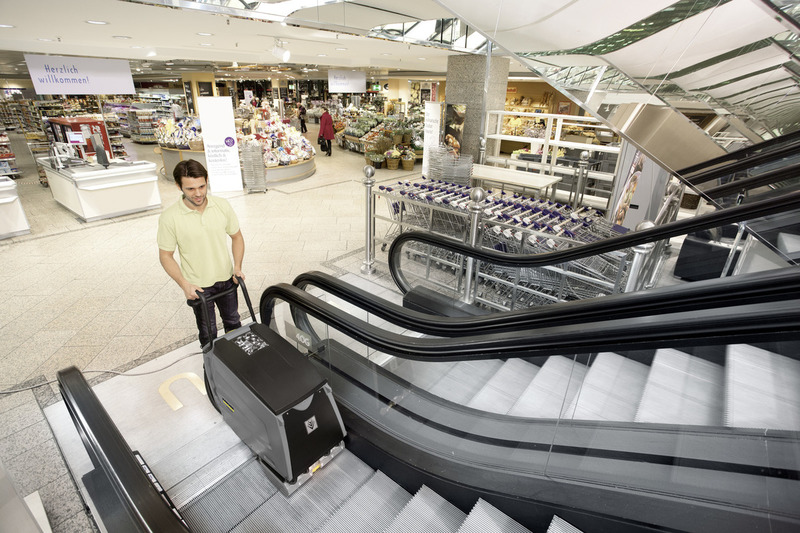

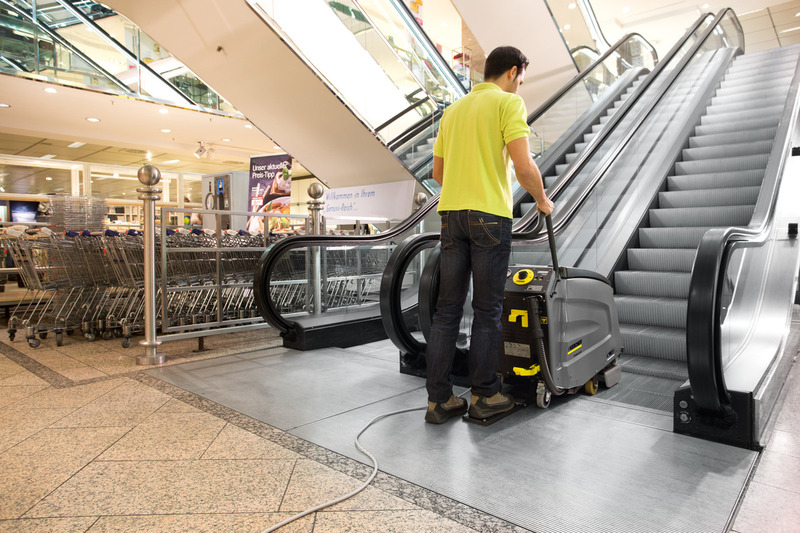

The BR 47 35 esc is a machine designed for basic and maintenance cleaning of escalators and travelators, capable of cleaning 2-3 units per hour. It operates while the escalator or travelator is running, positioned at the bottom. Special nozzles spray cleaning solution onto rotating brushes, which apply it to the treads, while pick-up brushes vacuum away dirty solution in one operation. The brush head design and central motor ensure thorough cleaning, even in outer grooves. A centering skid keeps the machine aligned. The BR 47 35 esc is compatible with various makes, offering four comb sets to efficiently seal and clean tread grooves.
Excellent Suction Power
Suitable for Escalators
Easy Operation
Tool-Free Brush and Comb Replacement
Brush Head Lowered for Escalators
High Quality
No Vibrations
Powerful Suction Turbine
Short Brush Head
| Type | Operations |
|---|---|
| Drive type | Mains operation |
| Working width of brushes (mm) | 470 |
| Tank of fresh/dirty water (l) | 35 / 35 |
| Brush rotational speed (rpm) | 870 - 1090 |
| Water consumption (l/min) | max. 1 |
| Sound pressure level (dB(A)) | 75 |
| Supply voltage (V/Hz) | 220 - 240 / 50 - 60 |
| Dimensions (L x W x H) (mm) | 1129 x 480 x 1031 |
Machine for basic and maintenance cleaning of escalators and travelators.
