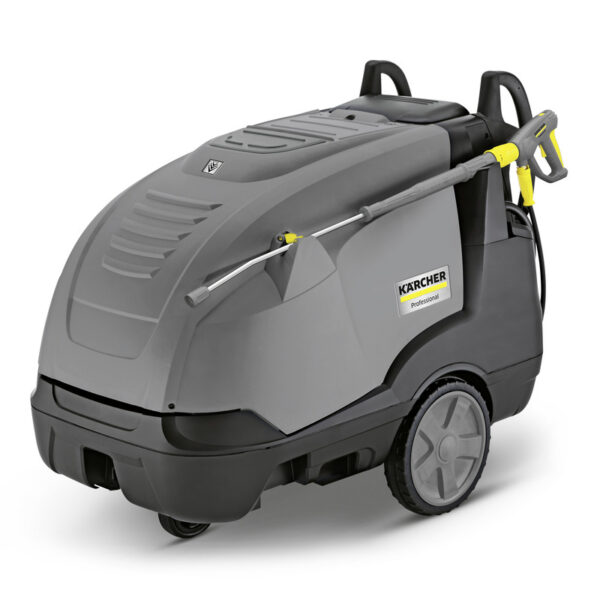

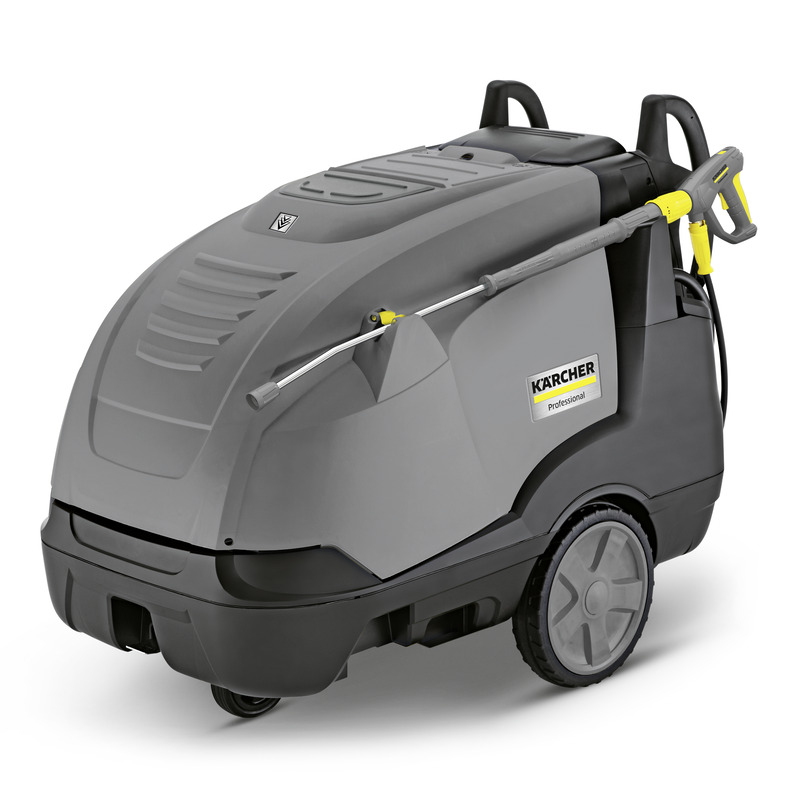

The HDS E 8/16-4 M delivers 24 kW heating output with a maximum work temperature of 85 °C, offering powerful, energy-efficient cleaning where exhaust gases are undesirable. Highly effective boiler insulation reduces standby power consumption by 40%, while eco!efficiency mode maintains 60 °C for most tasks. Servo Control allows stable temperatures up to 70 °C during continuous use. Operator comfort and efficiency are enhanced with the EASY!Force high-pressure gun and EASY!Lock quick-release fasteners, enabling fatigue-free operation and setup/dismantling up to five times faster than conventional connections.
•Energy Efficiency: Insulating material reduces standby energy use by up to 40%; eco!efficiency mode for optimal savings.
•High Work Temperature: Large water reservoir up to 85 °C; continuous operation at 45 °C or up to 70 °C with Servo Control.
•Ease of Use: EASY!Force high-pressure gun for fatigue-free operation; EASY!Lock quick-release fasteners for fast, durable connections.
•Servo Control: Delivers higher water temperature to accessories for demanding cleaning tasks.
| Type | Operations |
|---|---|
| Power supply (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 300 - 760 |
| Working pressure (bar/MPa) | 30 - 160 / 3 - 16 |
| Temperature (for supply 12 °C) (°C) | min. 45 - max. 85 |
| Connected load (kW) | 29.5 |
| Power cable (m) | 5 |
| Heating output (kW) | 24 |
| Weight (with accessories) (kg) | 122.1 |
| Weight incl. packaging (kg) | 133.8 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
For electrically heated hot water high-pressure cleaner for exhaust-free operation in indoor areas
