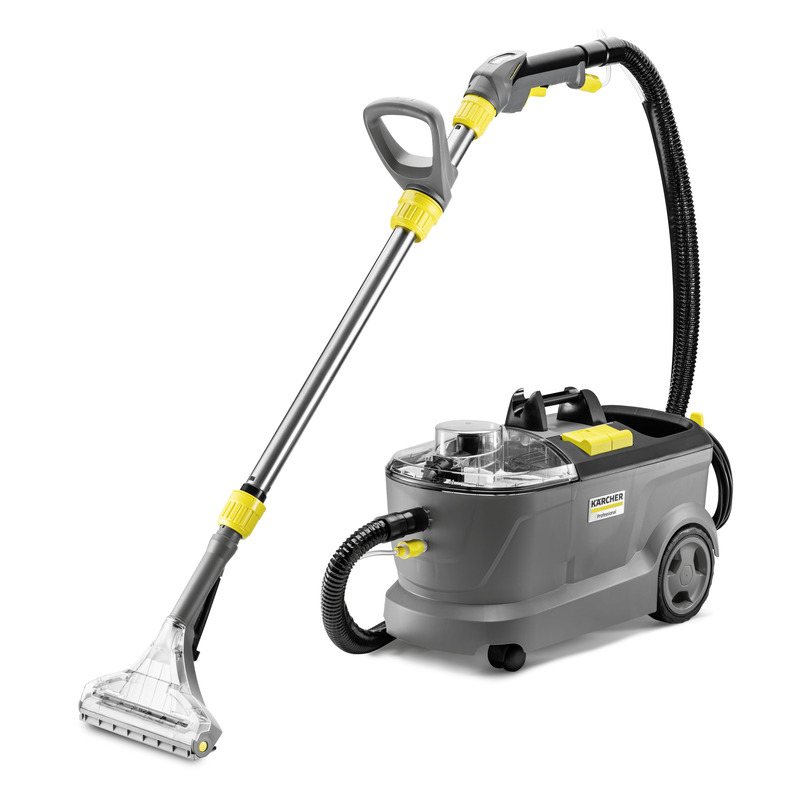

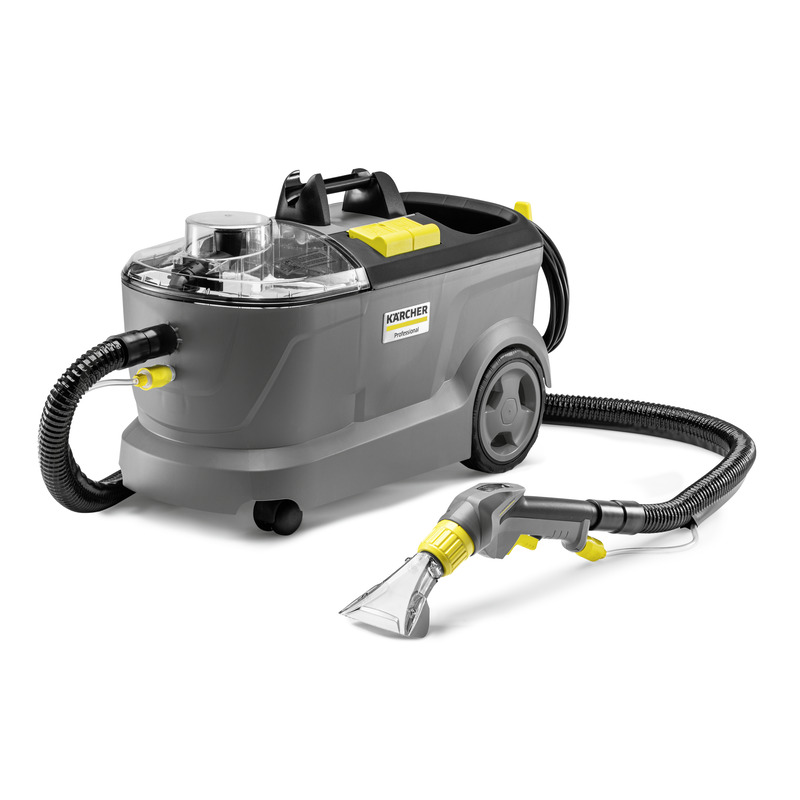

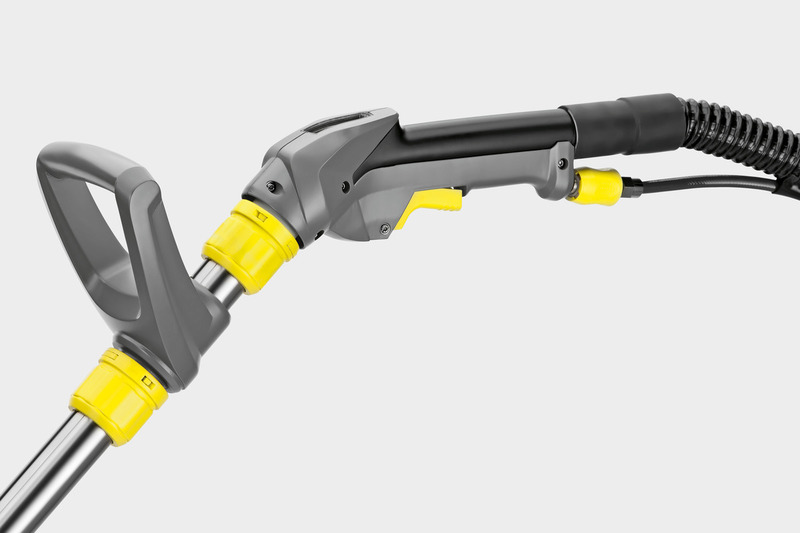

The Puzzi 10/1 is a versatile spray extraction machine with a floor and upholstery nozzle, designed for cleaning carpets and upholstery. Ideal for smaller areas, it features a 1 bar spray pressure for gentle, deep cleaning of textile surfaces. Its narrow floor nozzle makes it perfect for tight spaces, while flexible suction lips ensure easy cleaning in cluttered areas. The machine also includes an integrated cable hook and a holder for the handle with trigger and suction pipe, offering convenient storage and use.
Optimal Suitability for Daily Use
Removable Dirty Water Tank
Diverse Use
Ergonomic Design
| Type | Operations |
|---|---|
| Max. area performance (m²/h) | 20 - 25 |
| Air flow (l/s) | 74 |
| Vacuum (mbar/kPa) | 254 / 25.4 |
| Spray volume (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Tank of fresh/dirty water (l) | 10 / 9 |
| Turbine capacity (W) | 1250 |
| Pump capacity (W) | 40 |
| Supply voltage (V/Hz) | 220 - 240 / 50 - 60 |
| Colour | Anthracite |
| Weight without accessories (kg) | 10.5 |
| Weight incl. packaging (kg) | 16.1 |
| Dimensions (L x W x H) (mm) | 690 x 325 x 440 |
For intensive fibre-deep cleaning of upholstery and upholstered furniture · For intermediate cleaning and targeted stain removal on carpets.
