Karcher High Pressure Cold Water Cleaners – Single phase 50Hz – HD 6/15 M

Description

The AC-powered HD 6/15 M mobile high-pressure cleaner is a compact and reliable machine designed for high cleaning performance and energy efficiency in daily use. Equipped with a 3-piston axial pump, it offers innovative features such as automatic pressure relief to protect components during standby, the EASY!Force high-pressure gun that reduces retaining force to zero using recoil, and EASY!Lock quick-release couplings for faster handling (five times quicker than traditional screws). The machine supports both vertical and horizontal operation for versatility. Its robust pump with a brass cylinder head improves cleaning power and energy efficiency by 20%. Additionally, it provides ample storage options for accessories and a service-friendly design for ease of maintenance.

High-Quality Equipment

  • Automatic pressure relief protects components, extending their lifespan.
  • Powerful 2-pole, air-cooled electric motor.
  • High-quality brass cylinder head.

Flexible Operation

  • Supports both vertical and horizontal operation.

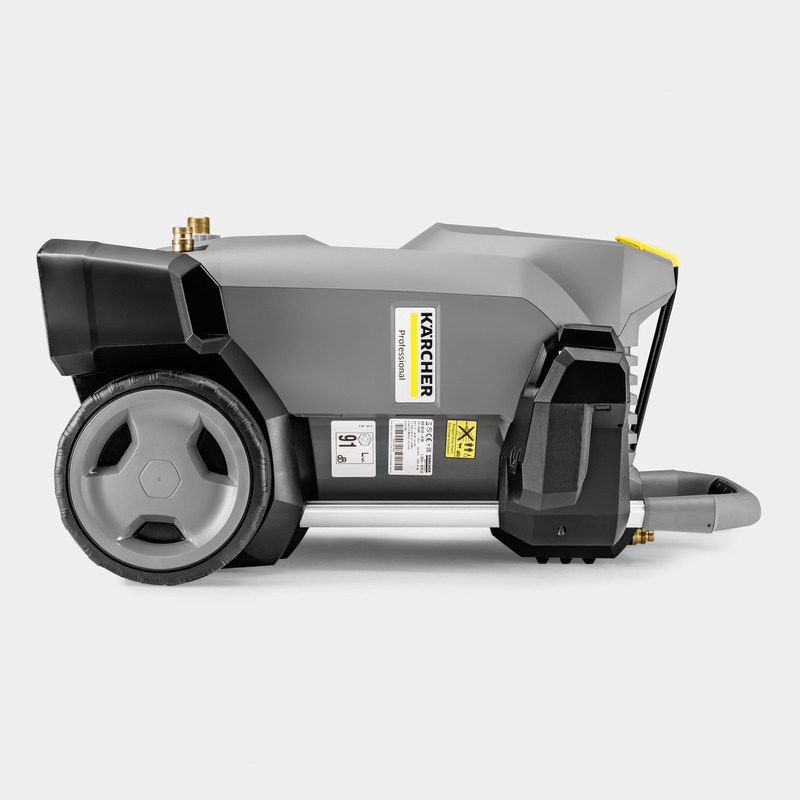

  • Maximum stability in horizontal use, with wheels lifted off the floor.

Outstanding Mobility

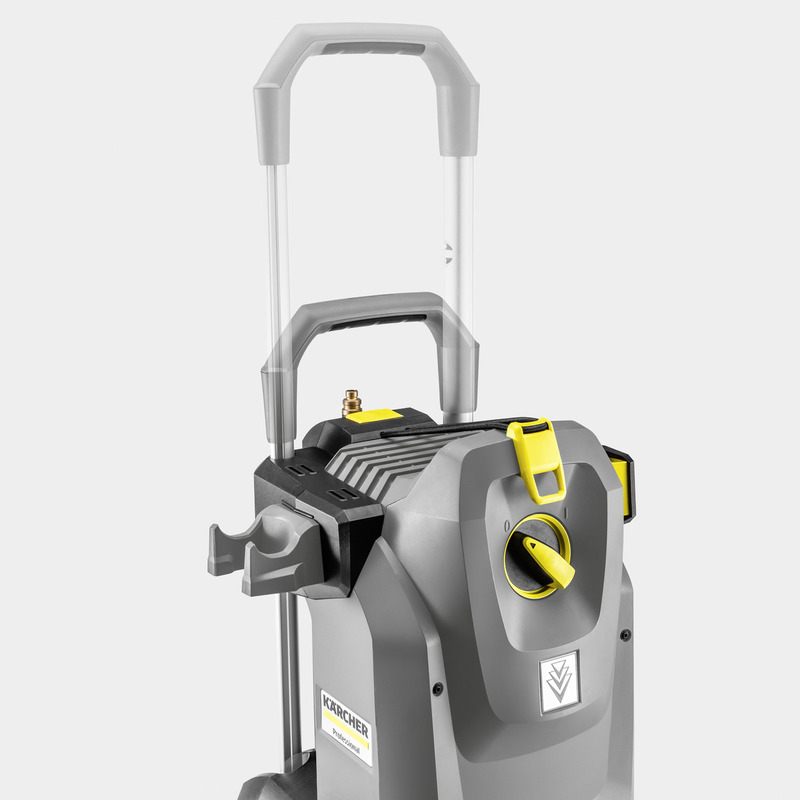

  • Retractable push handle for compactness and reduced space requirements.
  • Easily stored in service vehicles.
  • Integrated storage options to minimise set-up times.

Clever Accessory Storage

  • Holder for the cup foam lance.
  • EASY!Lock TR20 enables storage of Power nozzles or surface cleaners directly on the machine.
  • Practical nozzle compartment for rotary nozzles.

Easy Servicing

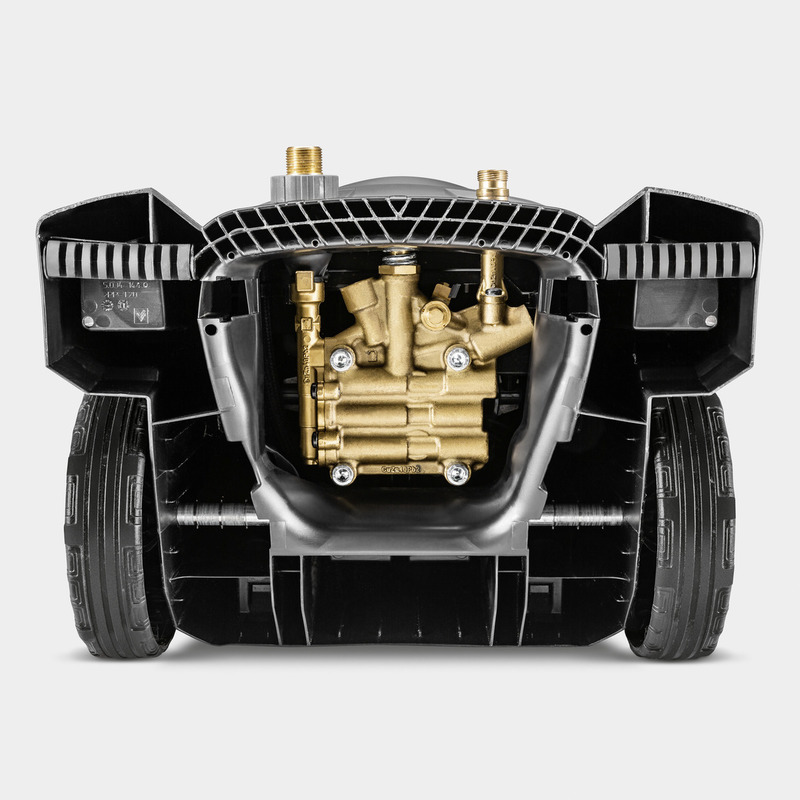

  • Easy access to the cylinder head through the bottom opening.
  • Quick access to the electrical box by removing the machine cover.
  • Large, easy-to-reach water fine filter protects the pump from dirt particles.

Effortless and Time-Saving Solutions

  • Fatigue-free EASY!Force high-pressure gun.
  • EASY!Lock quick-release couplings: durable, robust, and five times faster than screws.

Increased Energy Efficiency

  • Newly developed 3-piston axial pump reduces flow and pressure losses.
  • 20% increase in cleaning performance and energy efficiency.

TypeOperations
Supply voltage (Ph/V/Hz)1 / 230 / 50
Flow rate (l/h)560
Inlet temperature (°C)60
Working pressure (bar/MPa)150 / 15
Max. pressure (bar)225 / 22.5
Connected load (kW)3.1
Power cable (m)5
Water inlet3/4"
ColourAnthracite
Weight (with accessories) (kg)28.6
Weight incl. packaging (kg)32
Dimensions (L x W x H) (mm)400 x 455 x 700

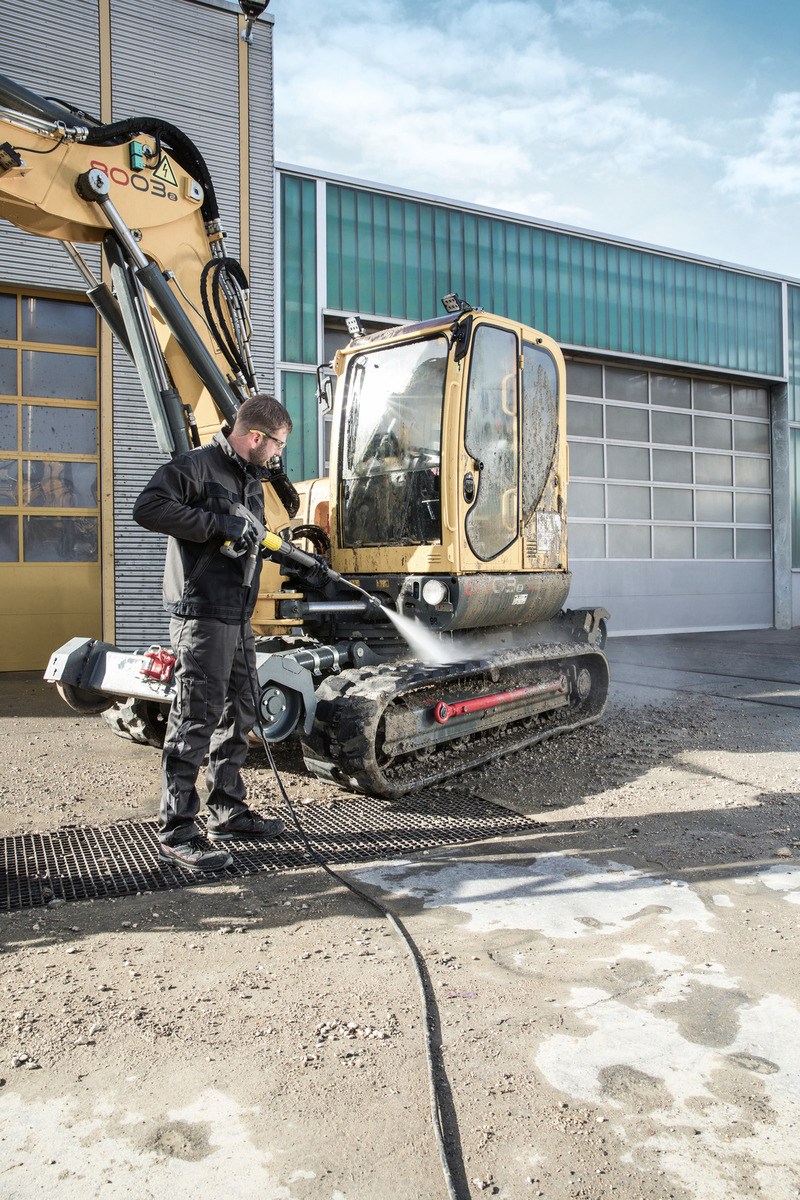

Perfect for building contractors, tradesmen, building service providers and municipalities.
